View from top of pool
This luxury, infinity pool is situated in the hills of Praiano. With the breathtaking views overlooking the Tyrrhenian sea, the decision to design the pool as an ‘infinity pool’, was an obvious one. The pool features include a bespoke counter-current system, automatic slatted cover, water saving Multi-cyclone, automatic backwash system and ozone water purification. We work overseas and offer a range of packages to suit your requirements; whether it be design, consultancy, installation or supply. Why not contact us here.

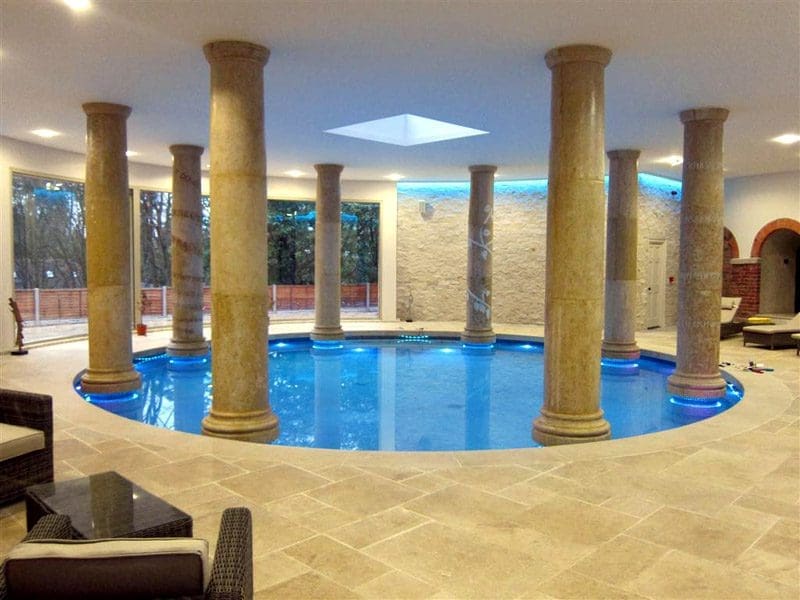

Unique Luxury Round Swimming Pool
This in one our more interesting pool projects, a 9.6m diameter round pool with 8 structural natural stone clad columns (0.5m dia) coming from within the pool.
The pool benefited from 16 led underwater lights with the surface kept clear by 4 stainless steel skimmers in the pool wall.
The pool plant room was fully automated with Besgo backwash systems and Poolwise chemical dosing backing up an ozone water treatment system.
A new build fully insulated outdoor swimming pool installed in the Cotswold’s.
Built using the Quadlock Insulating Concrete Form-work (ICF) pool shell, insulated on both internal and external faces of all walls.
The pool benefited from:
- Fully insulated pool floor, walls and pipe runs
- Automatic remote control insulated slatted cover
- Color changing fibre optic lights
- High spec stainless steel shell fittings
- Counter current swim jet unit
- Twin hydrotherapy water jets

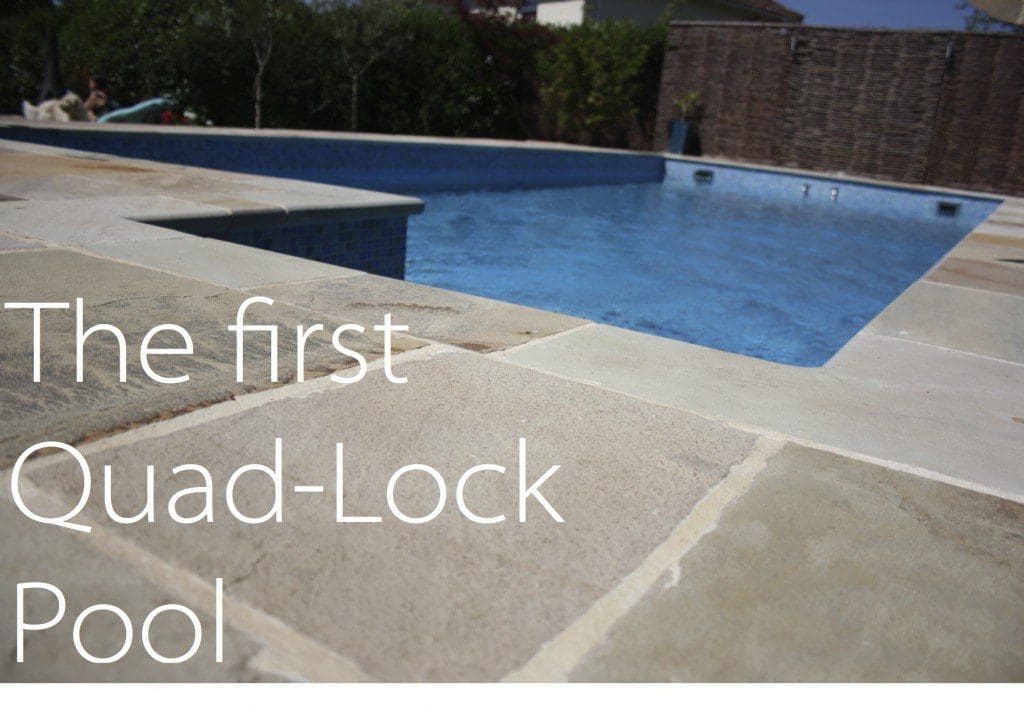

The First Quadlock pool
Image Credits Quad-Lock’s Zoran Prostran
A look at the construction of the first swimming pool to be built using the Quad-Lock ICF system.
The Quadlock insulated form-work system is ideally suited for swimming pools as its quick and easy to transport to site and constructing the pool shell walls can be achieved in rapid time. The Quad-Lock wall panels are manufactured from high density, biologically safe, long-lasting expanded polystyrene (EPS) and are held together with High Density Polyethylene (HDPE) wall Ties. The ties are available in many sizes thus enabling different uniform concrete wall thicknesses throughout the pool wall.
During the construction of the pool walls vertical and horizontal reinforcing steel is added to meet with the required structural reg’s. Filling the cavity with concrete creates solid, reinforced concrete wall which is then rendered, tanked and tiled. All fittings are fixed in place prior to the concrete pour and bracing ensures perfectly vertical, flat, insulated walls.
Over the many years of constructing pools using the Quadlock system, we’ve built up a vast wealth of tools and techniques which enable us to construct pools of any size, shape and style. Brookforge are pioneers in the insulated swimming pool market using the Quadlock pool system.
For any questions or for further information, contact us or read further.
