Indoor Insulated Overflow Pool Cambridgeshire

Insulated Indoor Overflow Pool

Insulated Indoor Overflow Pool

Working directly with the end user and their construction team, Brookforge designed, installed and commissioned this indoor overflow pool.

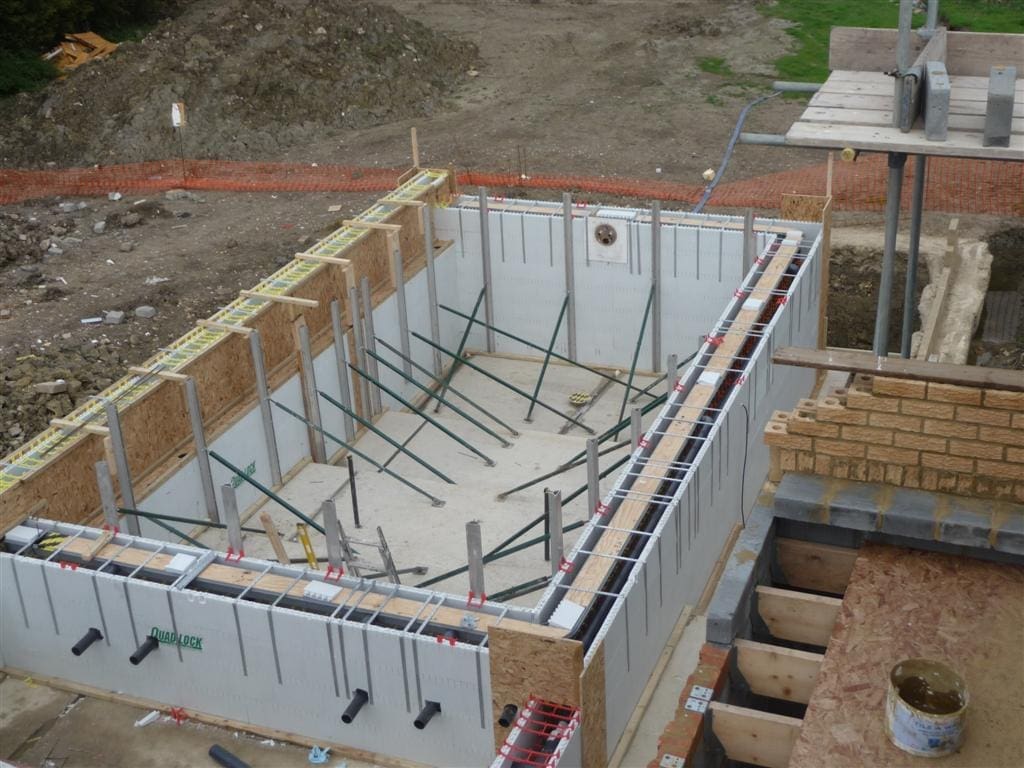

The pool was constructed using our Quadlock Pool ICF shuttering system and benefited from a very subtle slot overflow channel hidden beneath the copings and surround tile.

The Quadlock Pool system enabled one wall of the pool hall to be built directly on top of the pool wall, maximizing pool surround space elsewhere in the swimming pool building.

The pool featured semi-circular entry steps and submerged bench seating running along the full length of the pool.

The swimming pool and its overflow channel, plus the balance tank were waterproofed with Brookforge’s unique spray applied, flexible tanking membrane.

All the pool shell fittings were made in polished stainless steel and a high flow-rate counter current unit was installed in the deep end wall.

As the pool hall had large amounts of glass windows it was critical that a correctly sized, fully ducted Heatstar air handling unit was installed to ensure that the humidity, air temperature and water temperature were kept at the optimum levels.

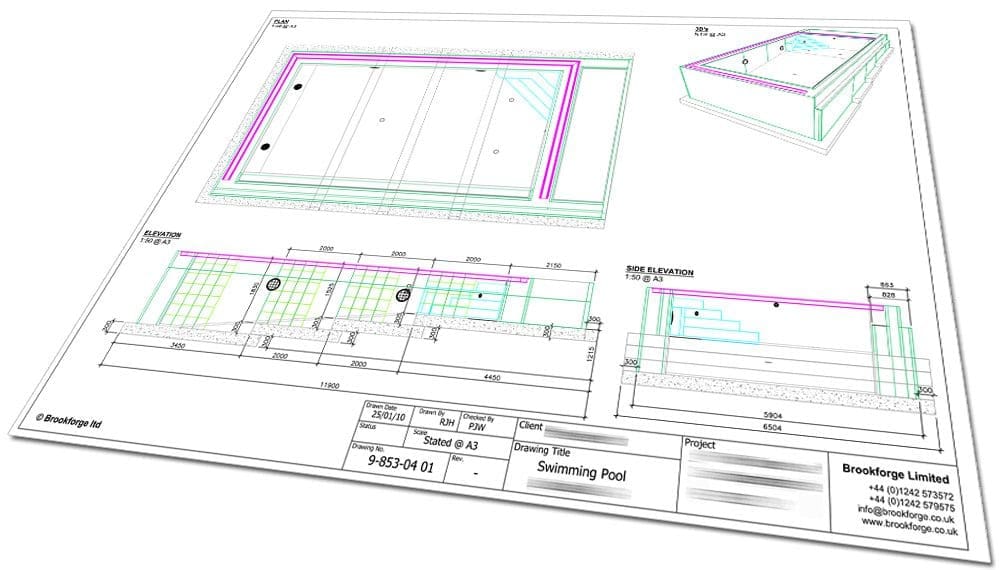

Initial Concept Drawing

Overflow Pool Channel Detail

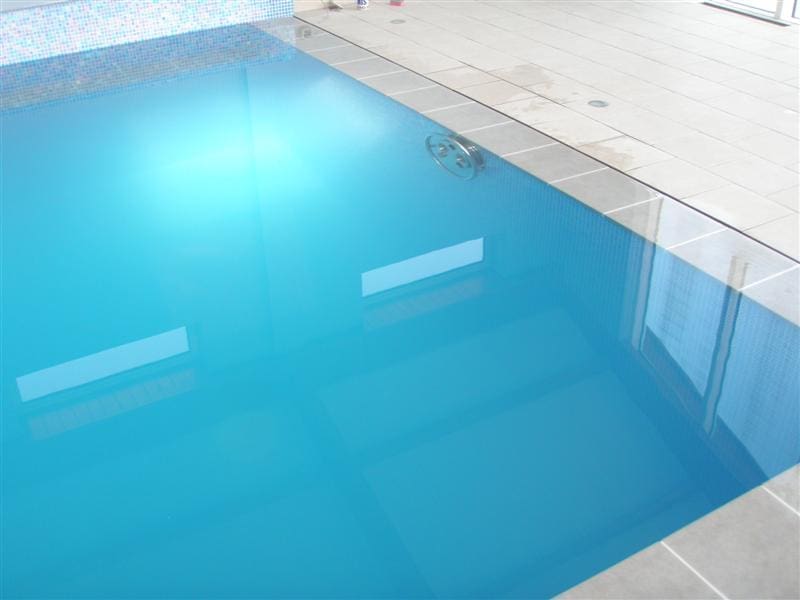

Slotted Overflow Channel

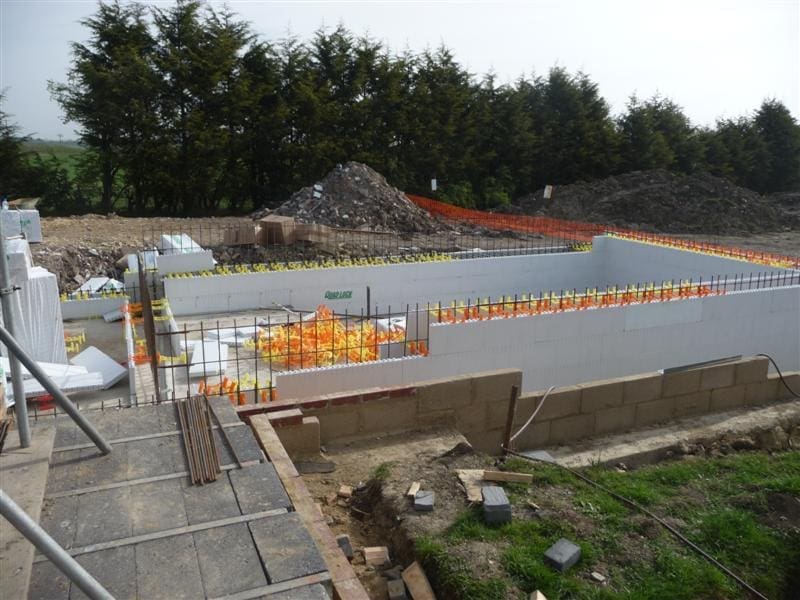

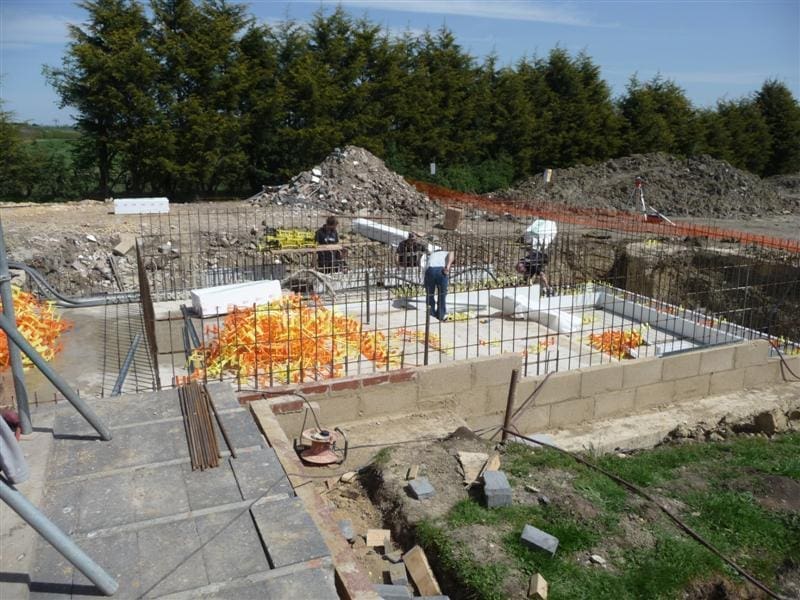

Insulated Pool Walls InstallInsulated Overflow Pool Construction

 Ref: 9-853
