Brookforge Swimming Pool Build

Hill top swimming pool shell construction begins

Quadlock pool shell construction

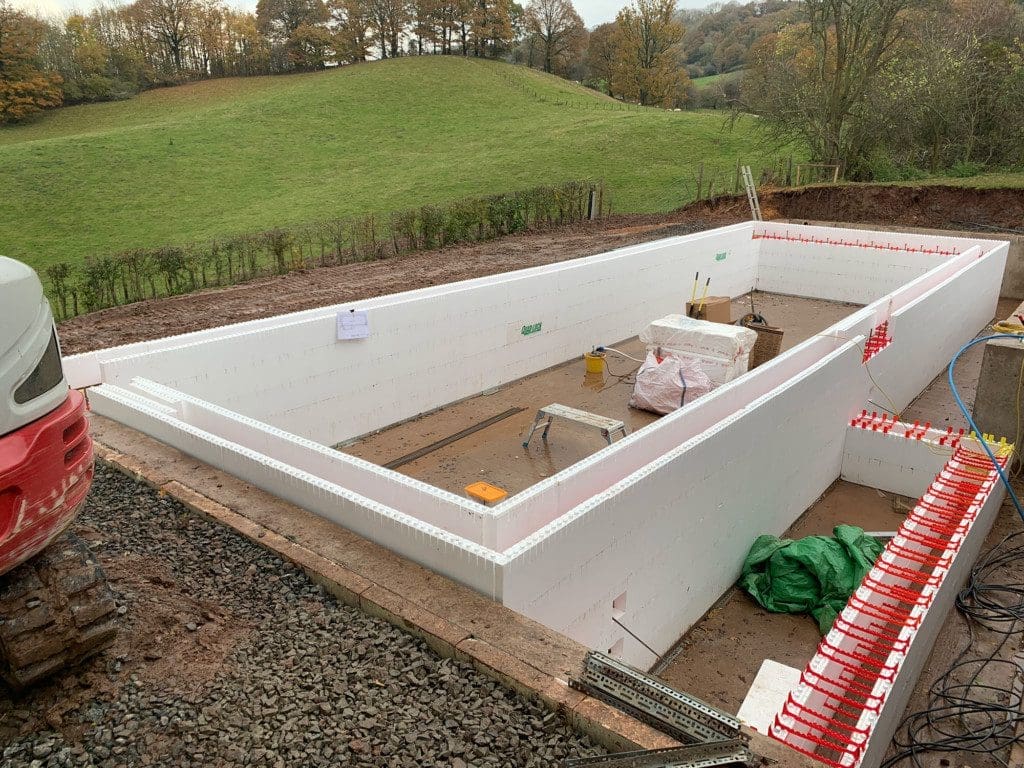

Construction of the Hill Top Beach Pool shell began on a steep Worcestershire hillside, where access and winter weather made careful planning essential. Quad-Lock insulated concrete formwork (ICF) was well suited to this location: the lightweight panels could be transported to the elevated site and assembled on the concrete base slab prepared by the groundworks team the previous week. Within days, the basic shape of the swimming pool shell was taking form.

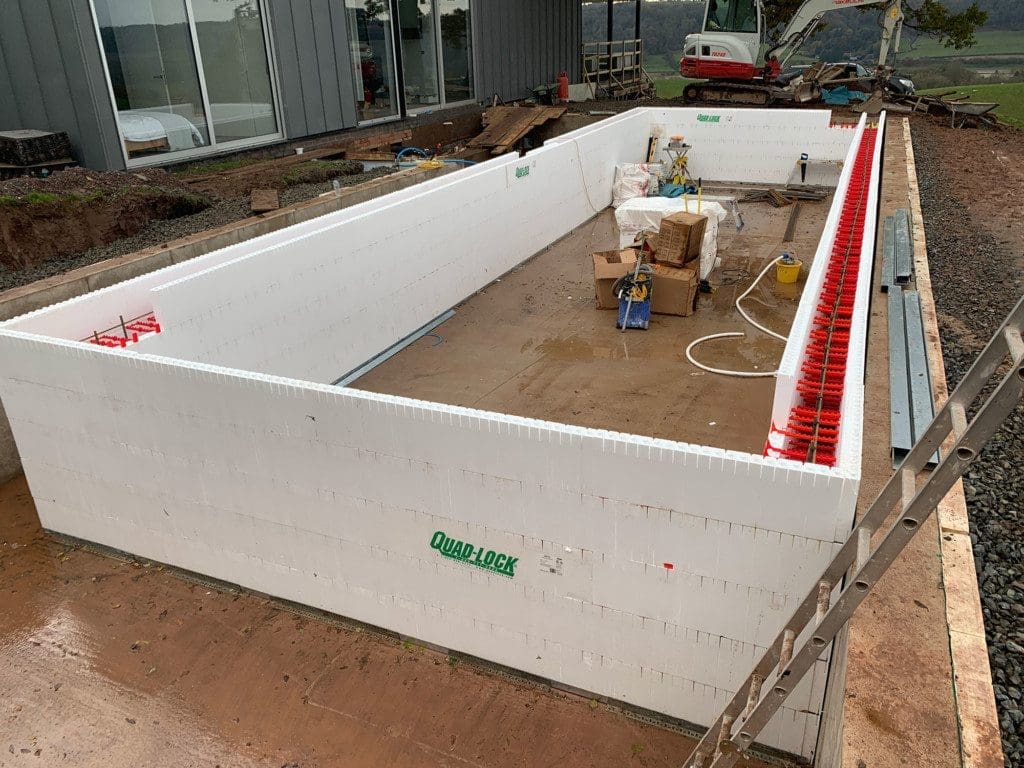

The installation started with base tracks loosely positioned on the concrete slab. Quad-Lock panels were then assembled in courses, with evenly spaced ties connecting the inner and outer faces of the formwork. After the first two courses, the team checked the wall alignment and pool dimensions and made any necessary adjustments. Once the layout was confirmed, the base tracks were secured and vertical steel reinforcement was fixed into the slab. Horizontal reinforcement was added as the remaining courses of formwork were built up. This sequence helped create the reinforced, insulated shell ready for the next construction stage.

The exposed hilltop site brought a wide range of winter conditions, from clear, frosty mornings to heavy rain and overnight ice. Although the ICF panels can be assembled in varied weather, concrete placement requires suitable temperatures and conditions. The team therefore monitored the forecast closely before scheduling the pour, particularly when freezing weather was expected. See how the walls were braced and prepared for concrete, then follow the successful concrete pour. For the complete story and finished photographs, visit the Hill Top Beach Pool case study.
