Brookforge Swimming Pool Build

Commissioning Outdoor Overflow Pool

Outdoor slotted overflow swimming pool

Outdoor overflow swimming pool

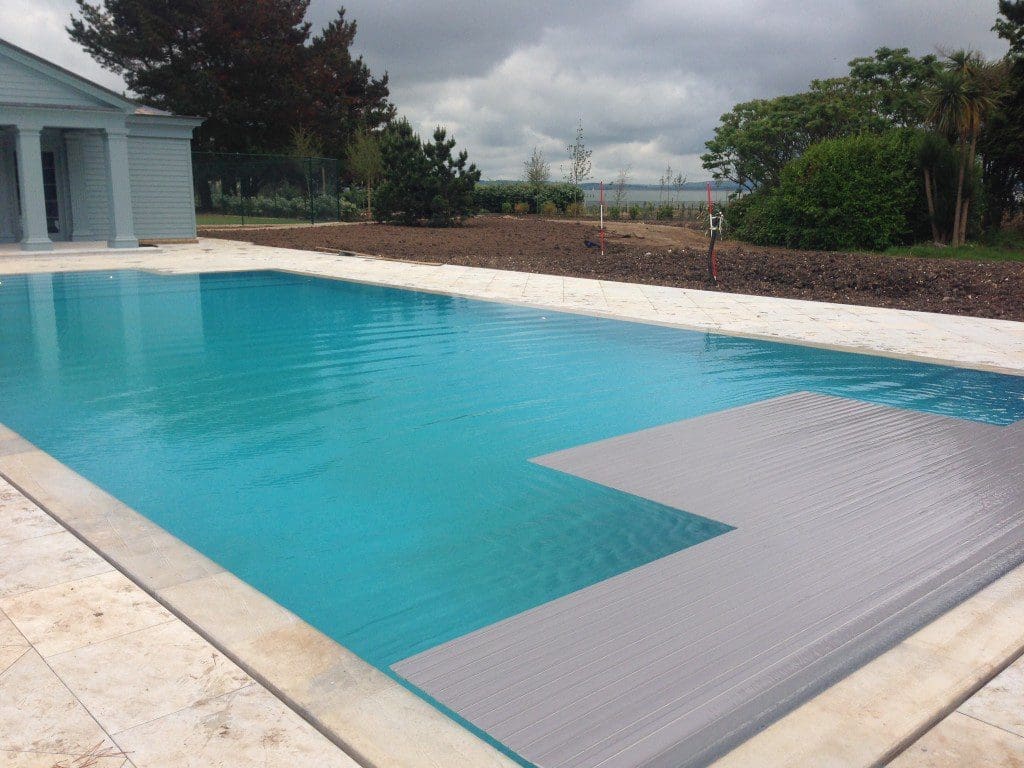

Testing Hidden Slatted CoverLuxury Slot Overflow PoolAn outdoor overflow pool is in the final stages of commissioning with the testing and calibrating of its thermal slatted cover.

Down on the south coast of England this pool was designed to be built using the Quadlock ICF system. Using an ICF system means the pool is highly insulated and the addition of a thermal slatted cover keeps heat losses to the minimum.

The features of this Outdoor Overflow Pool

This pool benefited from a hidden slotted overflow system, where an overflow channel is fitted below a 30mm slot between the coping and surround tile. The tiles are supported on a stainless steel mesh preventing larger debris from entering the overflow system. The overflow water is channeled back to a balance tank which is then pumped back to the plantroom via a multi-cyclone pre-filter to remove any smaller yet visible debris. As the outdoor overflow pool is highly insulated on the floor and walls, a thermal slatted cover was installed within a hidden cave in the pool wall.

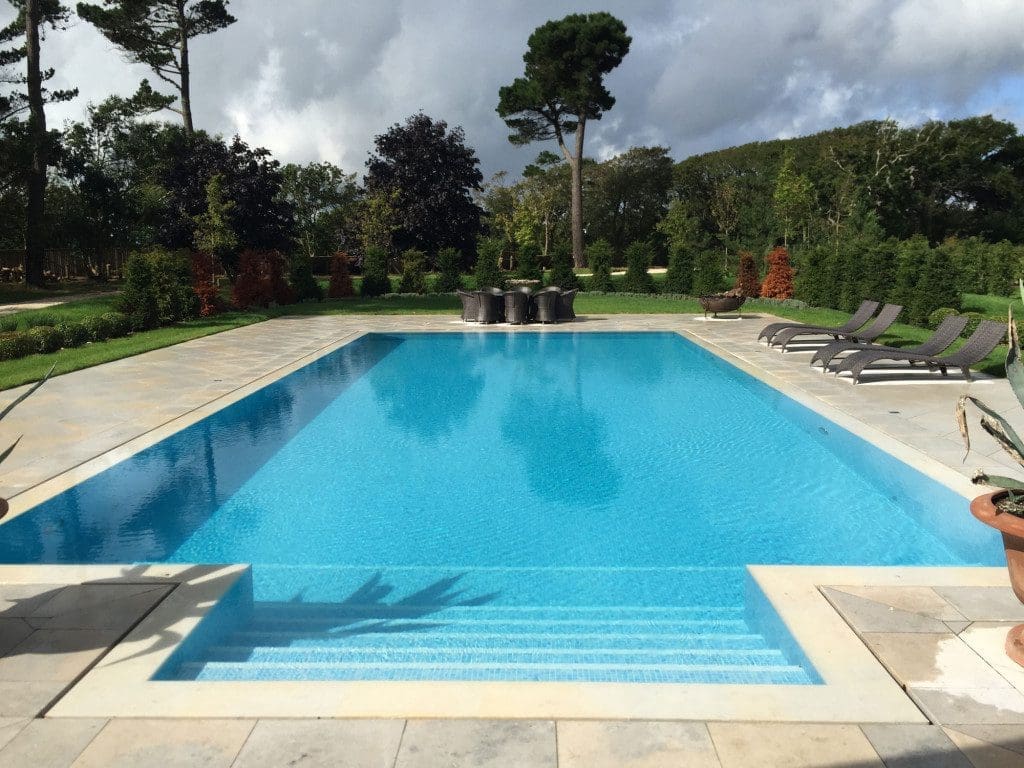

Completed pool pictures now in portfolio
