Swimming Pool Refurbishment Complete

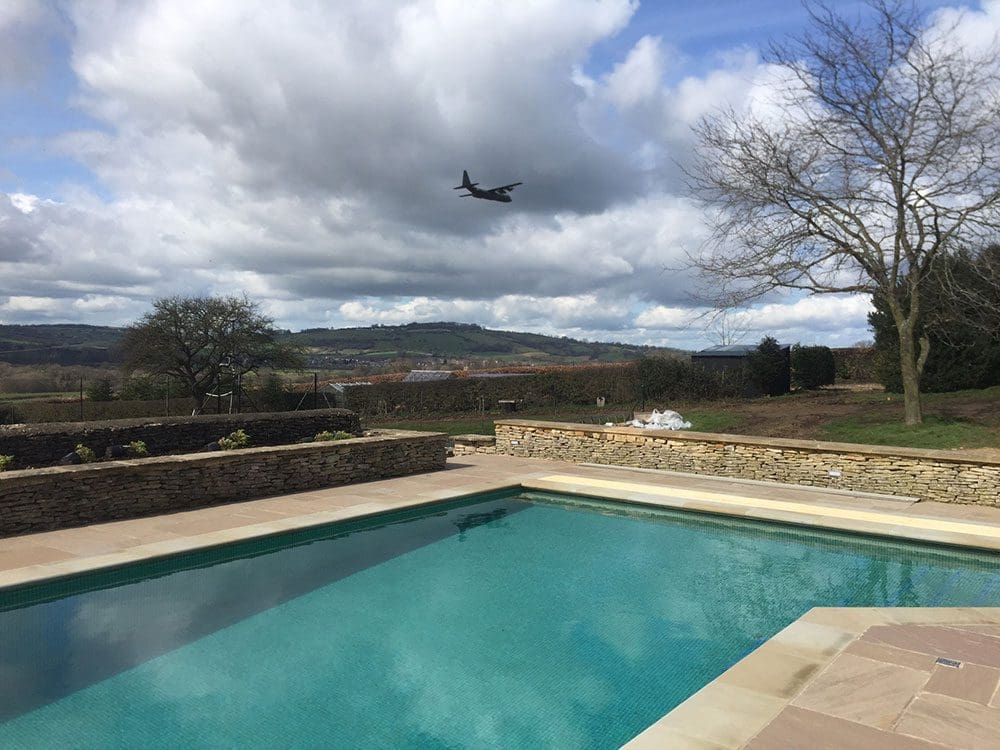

Swimming pool refurbishmentA swimming pool refurbishment has successfully completed just in time for the sun coming out this weekend. The existing outdoor pool overlooks a cotswold valley and required a complete refurbishment. The pool had fallen into a sorry state after nearly 40 years of use so needed stripping out for a complete refurbishment and bringing up to date with the latest plant room equipment.

The pool had previously been covered with a bubble solar cover but as part of the refurbishment they required a new automated hidden slatted cover system.

The structure of the existing pool shell had stood up to ther test of time but new structural calcs were required to add on a new ‘letterbox style’ cover pit; which was constucted behind the existing shallow end wall.

Read More…

Hidden slatted cover on bespoke spa

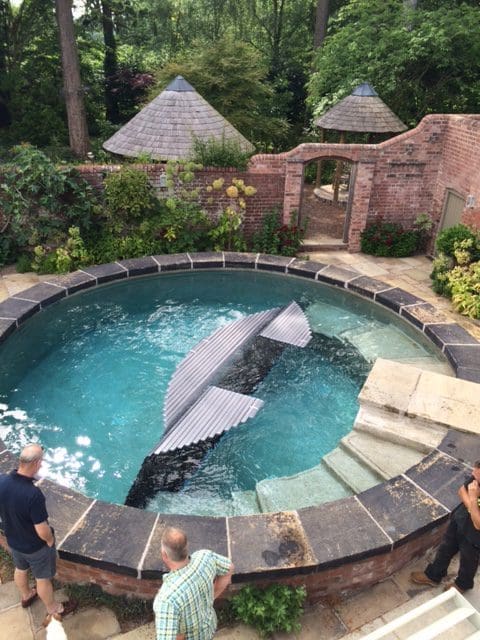

Hidden Slatted Cover On Round Spa ClosingThis large, bespoke, outdoor spa required a cover to keep in heat and keep out the debris. Due to the spa size and onsite storage problems a standard lift on cover was out of the question.

Brookforge pool builders where contacted to find a solution to this unique problem. Collaborating with a highly experienced spa cover manufacturer, the solution was to hide a fully automated hidden slatted cover in the base of the spa below a twin hatch door. The submersible in-roller motor was activated via a pool side remote control keeping it’s operation as simple as is possible

The thermal slatted cover was custom made to ensure it fitted tightly to the unique shape and top steps in the spa.
Read More…

New build basement swimming pool

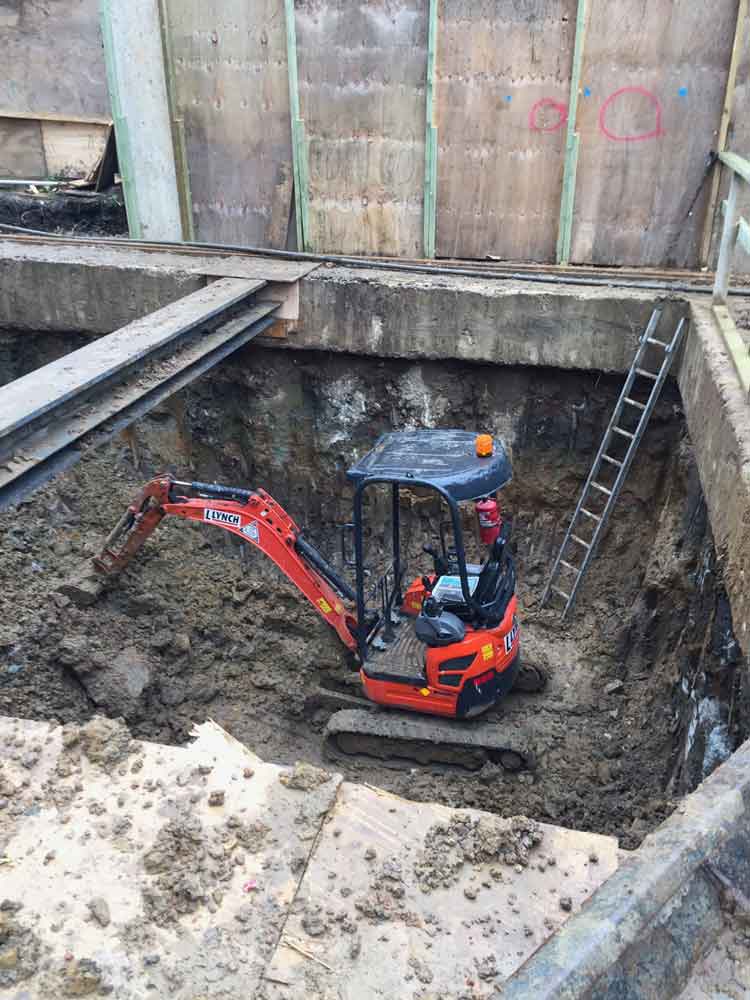

Digging a basement pool hallSite excavation work has started on a new build basement swimming pool in London. The pool will be 20 meters in length and will have 2 depths with sloped riser between them. The shallow water depth is 1.3m going down to a deep end water depth of 2m.

The pool will be a skimmer pool with a 150mm freeboard to the surround floor tiles, it will also benefit from a remotely controlled hidden thermal slatted cover.

The pool hall will be built from scratch and will be located below an existing garden.

Working closely with the architects and mira construction, Brookforge will be designing, building, tanking, tiling and piping up everything pool related.

The plant room and all the associated equipment will be installed and tested by Brookforge as well as the pool hall air handling, dehumidification and ducting systems. Read More…

Pool Pipework Installation for School Pool

Pool Pipework Installation

Commercial Plantroom

Brookforge can offer assistance an expertise for Pool Pipework Installation and the associated plant room equipment and hydraulics when working alongside all of your contractors. That was certainly the case with a recent project in north London.

The client was a small Primary school, who elected a contractor of choice to construct both pool and pool hall. The initial pool and pool hall was designed by the clients architect who had a vision of a unique shape deck level overflow pool.

Brookforge were asked to:

  • Design the pool shell
  • Provide full installation drawings onto there construction/structural drawings
  • Design the pool plant room layout, hydraulics and water treatment systems
  • Pool Pipework Installation
  • Supply and install all pool shell fittings
  • Supply and install all plant room equipment and hydraulics
  • Provide advice and assistance throughout the project.

The plant room benefitted from the latest in automated pool plant equipment such as :



Hydrotherapy Spa Completed

Hydrotherapy Spa Completion

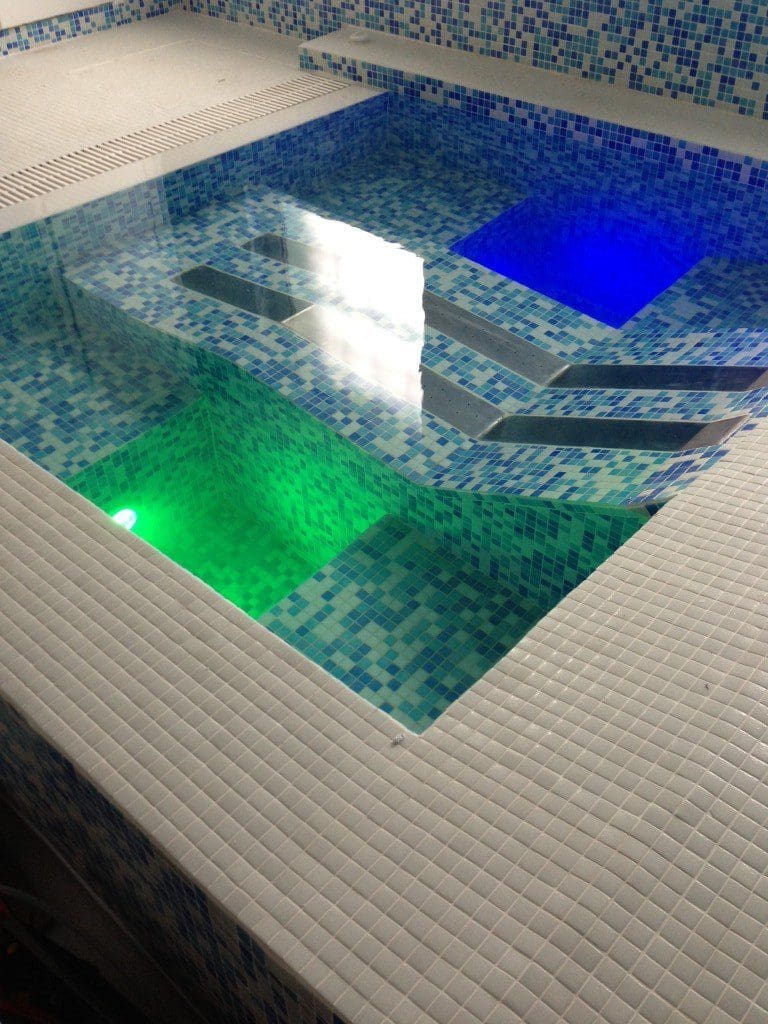

A New Hydrotherapy Spa has been completed a school for children with disabilities and is now fully up and running.

Sensory hydrotherapy spa massage pool

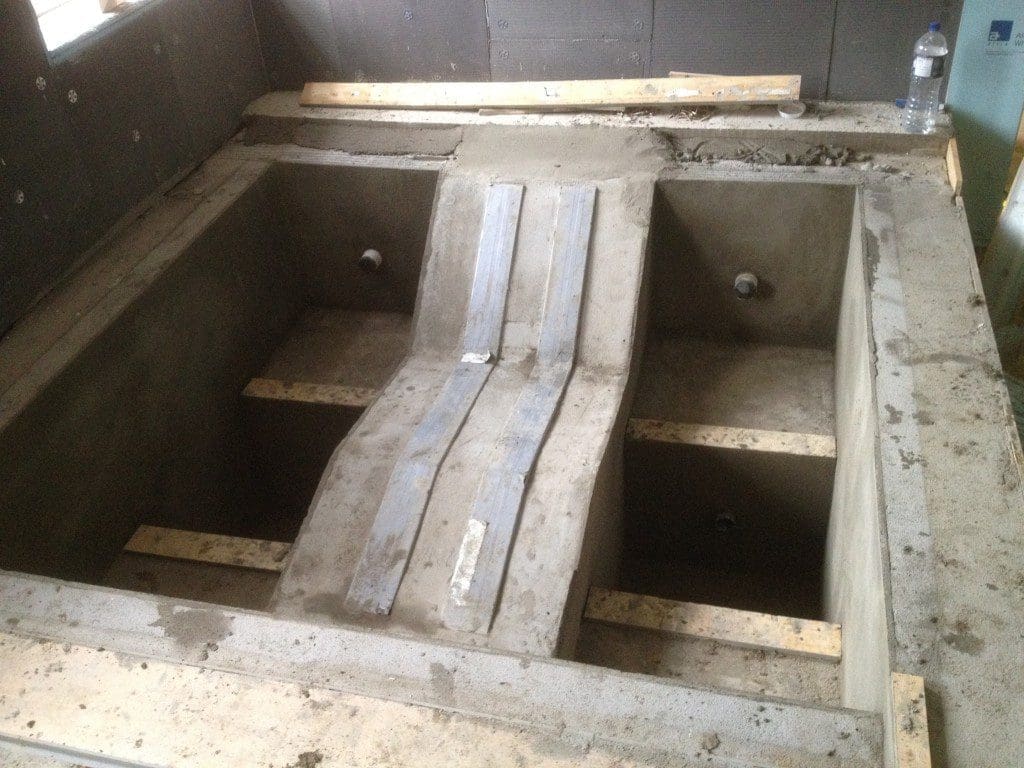

This hydrotherapy spa was constructed using the Quadlock ICF system so the shell was highly insulated and kept heat losses are kept to a minimum.

As the Spa had a beach area with grill covered overflow, it required a balance tank which was an integral part of the shell construction.

The spas features include:

  • Fully insulated spa structure.
  • Four seats (for spa users and assistants when massage bed is in operation).
  • A twin strip hydrotherapy air massage bed.
  • Fully customisable underwater colour changing LED lights which will add to the sensory element.
  • Overflow edge with associated with balance tank.
  • Environmental control system with dehumidification, heat recovery, heating of both air and water.

The Hydrotherapy pool will be both stimulating and relaxing for all its users.
