Swimming Pool Plant Room Installation

Cliff side infinity pool

Cliff side infinity pool

Brookforge pool engineers recently helped complete a swimming pool plant room installation for a cliff edge pool in Salcombe.

The pool was built and tiled by a local pool company and Brookforge took over to install all the pool shell fittings and install/test/commission the highly automated pool plant room.

Working directly for the owner; our engineer worked long hours with several late nights to get this highly automated swimming pool plant room up and running within 6 working days.

Read More…

Installing swimming pool balance tank

Lifting balance tank into position

Lifting balance tank into position

With any overflow pool the ability to maintain the flow of water can be achieved with a swimming pool balance tank. The swimming pool balance tank allows for surges of water from the overflow channel to be temporarily stored so a constant flow of water can be maintained through the plant room water treatment systems. Below are pictures taken during the installation of a prefabricated swimming pool balance tank with Brookforge recently installed.

The balance tank is being cast in re-enforced concrete so that heavy plant equipment can be driven over the top of the balance tank during the future development of the site.



Read More…

Hidden overflow pool and spa in basement of new build house

Hidden overflow pool and spa with massage jetsA new build house in Hale, Greater Manchester required a luxury basement pool and spa to compliment a wellness suite. Working directly with the customer and liaising with their architect ensured Brookforge could design and build a hidden overflow pool and spa which fitted within the desired budget.

As this was a basement pool project we were onsite at the very early stage of construction when the excavations were first taking place. Detailed construction drawings were provided to ensure that the project set off on the right footing.

As this was a new build pool and spa in was important that it was highly insulated to comply with PART L guidance to ensure reasonable provisions were made to limit heat losses. An obvious choice of construction was to use an ICF system (insulated concrete formwork).

The Quadlock ICF system aloud for quick and easy construction for the swimming pool with integrated spa and a hidden overflow helped create a very tidy and contemporary finish. Read More…

New build swimming pool with metal overflow

New Build Swimming Pool With Metal Overflow Grating PoolA new build swimming pool constructed near Romsey. The overflow swimming pool was built using the quadlock ICF system. Using insulated concrete formwork (ICF) ensures that the pool is highly insulated and structurally solid.

The new build swimming pool benefited from luxury stainless steel parallel grating tiles , the grating tiles are designed to be extra wide ensure the pool surround area is kept dry. The balance tank was directly below the overflow and the water entered the tank via shoot to minimise any unwanted water noises.

To ensure the balance tank was hard wearing, easy to maintain and water tight it was fibre glassed onsite.

Read More…

Pool Balance Tank and Steps Constructed using ICF

Pool Balance Tank and steps using ICF

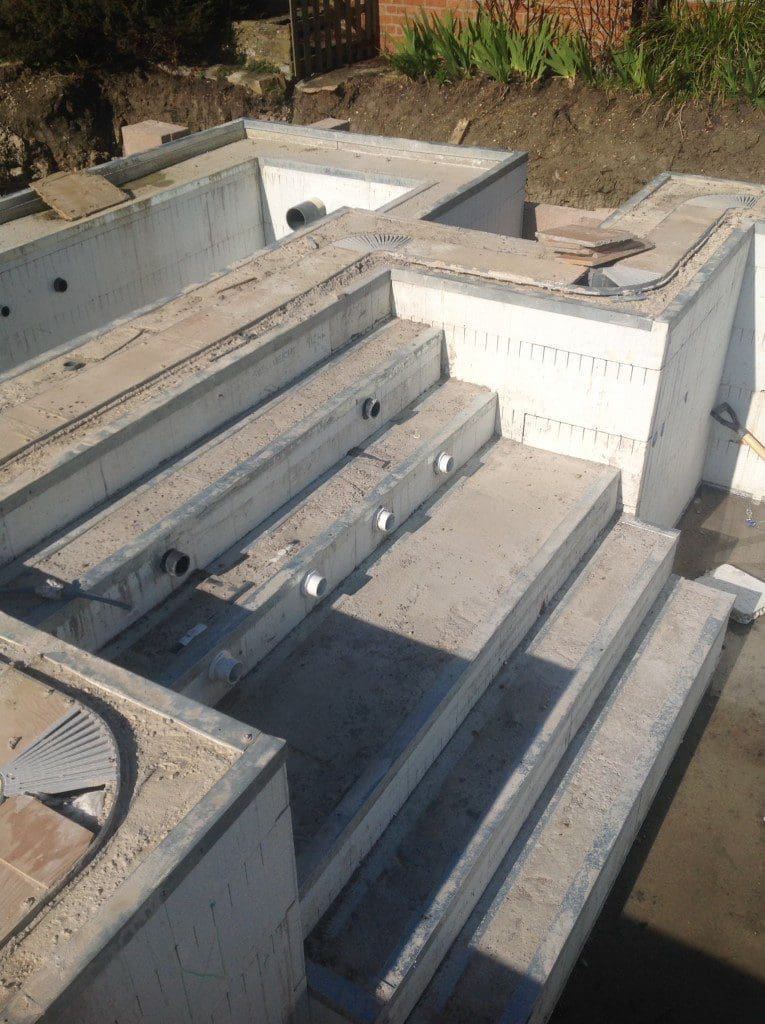

Swimming pool balance tank & steps constructed using quadlock ICF.

By constructing the swimming pool balance tank using ICF, we ensure that the balance tank has the same level of insulation as the rest of the Pool shell.

Not only can we construct the swimming pool walls out of quad lock, we can also use the system to form custom swimming pool steps. By constructing the steps out of ICF it enables us to pass fittings through. Inlets, lights and massage jets can be added to make a feature out of the steps and a great place for bathers to sit and relax.
